Publish-Subscribe Messaging Pattern in Enterprise Messaging Systems (EMS)

In the context of Enterprise Messaging Systems (EMS), the Publish-Subscribe (Pub/Sub) model is a messaging pattern that enables asynchronous communication between components in a loosely coupled architecture. Here's a clear breakdown of the concept:

What is Pub/Sub in EMS?

Pub/Sub is a messaging paradigm where:

• Publishers send messages to a topic (not to specific receivers).
• Subscribers express interest in one or more topics and receive messages published to those topics.

This model is ideal for event-driven architectures, real-time data distribution, and scalable systems.

Core Components

Component

Description

Topic

A named channel where messages are published.

Publisher

Sends messages to a topic without knowing who will receive them.

Subscriber

Listens to a topic and receives messages of interest.

How It Works

1. A publisher sends a message to a topic.
2. The EMS broker (like ActiveMQ Artemis, IBM MQ, or TIBCO EMS) receives the message.
3. All active subscribers to that topic receive a copy of the message.

Key Characteristics

• Decoupling: Publishers and subscribers don’t know about each other.
• Scalability: Multiple subscribers can independently process the same message.
• Asynchronous: Subscribers can process messages at their own pace.
• Durability (optional): Messages can be stored until subscribers are ready (durable subscriptions).

Use Cases in EMS

• Stock price updates to multiple trading systems.
• Sensor data broadcast to analytics and monitoring tools.
• News feeds or notifications to multiple user devices.
• Microservices communication in event-driven systems.

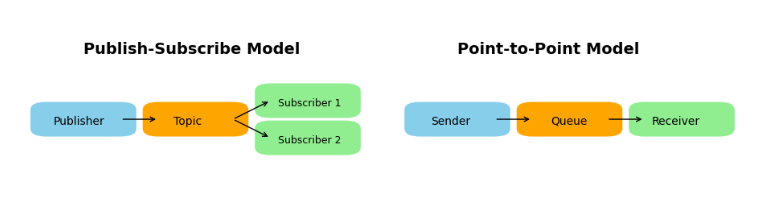

Publish-Subscribe Model

• Publisher sends messages to a Topic.
• All Subscribers to that topic receive a copy of the message.
• Ideal for broadcasting events to multiple consumers.

Point-to-Point Model

• Sender sends a message to a Queue.
• Only one Receiver consumes the message.
• Ideal for task distribution or load balancing.

Let’s walk through how the Publish-Subscribe (Pub/Sub) model is implemented using both RabbitMQ and Apache ActiveMQ Artemis, highlighting their similarities and differences.

RabbitMQ: Pub/Sub with Exchanges and Queues

Key Concepts

• Exchange: Routes messages to queues.
• Fanout Exchange: Broadcasts messages to all bound queues (used for Pub/Sub).
• Queue: Stores messages for consumers.
• Consumer: Subscribes to a queue.

Example Flow

1. Publisher sends a message to a fanout exchange.
2. The exchange routes the message to all bound queues.
3. Each queue has a consumer (subscriber) that receives the message.

ActiveMQ Artemis: Pub/Sub with Topics and Multicast

Key Concepts

• Address: Logical destination (like a topic).
• Multicast Routing: Sends messages to all queues bound to the address.
• Durable Subscription: Subscribers can receive messages even if offline.

Example Flow

1. Publisher sends a message to a multicast address (topic).
2. Artemis routes the message to all bound queues.
3. Each queue has a subscriber that receives the message.

Comparison Table
